ARVEN

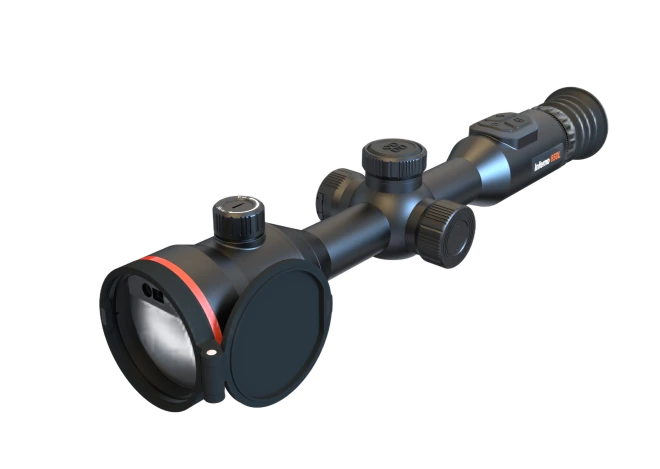

COUG CG635L Thermal Scope
Thermal Scope

COUG CG635L Thermal Scope

SKU CG635L

COUG CG635L features a 384×288 @12μm VOx detector with NETD ≤18 mK and 50Hz frame rate, delivering clear imaging in all conditions.

COUG CG635L features a 384×288 @12μm VOx detector with NETD ≤18 mK and 50Hz frame rate, delivering clear imaging in all conditions. Equipped with a 35mm F0.9 lens, it achieves a detection range of up to 1800m. The built-in 905nm Class 1 laser rangefinder and ballistic calculation ensure accurate shooting. Adopting dual batteries, it supports up to 17 hours of continuous use. With IP67 rating and 1000g shock resistance, it performs reliably with high-caliber firearms in harsh outdoor environments.

Key Features

  • 384 × 288 @12 μm VOx thermal detector, NETD ≤18 mK, 50Hz frame rate

  • 35mm F0.9 lens, max detection range up to 1800m

  • 0.39-inch AMOLED display with 1024×768 resolution, multiple scene modes & color palettes

  • 905nm Class 1 laser rangefinder (1.2km, ±1m accuracy) + ballistic calculation & calibration

  • Dual battery design, continuous working time ≥17h at 25°C, battery non-polar design for normal operation in forward and reverse installation

  • 10 zeroing profiles, rich reticle and aim point options

  • IP67 protection, operating temperature: -20°C ~ +50°C, shock resistance up to 1000g/0.4ms

  • Wi-Fi connection, 64GB storage, video recording, snapshot and electronic compass supported

DOCX

Specifications

ARVEN COUG CG635L 20261027 产品说明书.docx
Thermal Module
Image SensorUFPA (VOx)
Resolution384×288
Pixel Pitch12µm
Frame Rate50Hz
NETD≤18mk
Spectral Range8-14µm
Optical Parameter
Focal length / Aperture35mm; F1.0
Field of View7.5°×5.6°
Base Magnification3.8X
Focusing ModeFocus Knob
Eye Relief48mm
Exit Pupil/ 6mm
Diopter+5D to -5D
Detection Range1800m (Human; 3pixels)
Recognition Range450m (Human; 12pixels)
Image Display
ScreenAMOLED,1.03 inch
Resolution2560×2560
Screen Brightness AdjustmentSupport
Brightness AdjustmentSupport
Contrast AdjustmentSupport
Image EnhancementSupport
Scene ModeCity;Plain;Forest
Display ModeCircle;Box
Color PaletteWhite Hot/Black Hot/Red Hot/Fusion/Golden Hot etc.
Digital Zoom1× to 8× step by 0.2×
Power Supply
Battery type & Number1 built-in 21700 Lithium battery & 1 replaceable 18650 Lithium battery
External Power SupplyDC 5V (USB Type-C)
Power Consumption≤2.4W（25℃）
Battery Operating Time≥14h （25℃）
System
Record VideoSupport
Capture SnapshotSupport
Audio RecordingSupport
Local AlbumSupport
Recoil Activation RecordingSupport
Picture in PictureSupport
Hot TrackSupport
Zeroing Adaptation ModeSupport
Screen Adaptation-
Standby ModeSupport
Ballistic CalculationSupport
Ballistic CalibrationSupport
Distance MeasurementSupport
Zeroing Profiles10
Reticle Pattern8
Reticle Color6
Aim Point Type3
Aim Point Colour6
BC Aim Point Type5
BC Aim Point Colour4
Ranging Cursor Type3
Ranging Cursor Colour3
Peripheral
Electronic CompassSupport
Attitude SensorSupport
WIFI /APPSupport; 2.4G
StorageBuilt-in EMMC (64GB)
Laser Rangefinder905nm;Class 1 Laser Safety
Ranging Distance & Accuracy1.2 Km*; ±1m
General
Data Transmission InterfaceUSB (Type-C)
Protection LevelIP67
Operating Temperature-20°C to +50°C
Max. Recoil1000g/0.4ms
Weight（without battery）≤935g
Dimension383×90×86（mm）

* Specifications as published by ARVEN. Compliance documents available upon request.
